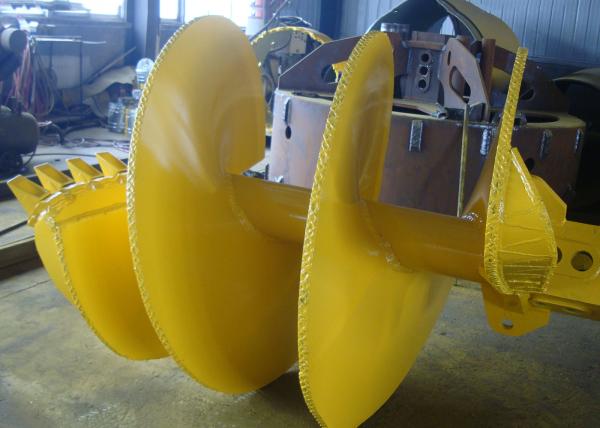

Double Cut 2500mm Diameter 30mm Flight Rock Drilling Auger

Ask Lasest Price
Brand Name :	JYY mechanical
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	6000 drill bits per year
Delivery Time :	From 3 working days, depending on the order quantity and inventory

Add to Cart

Product Details
Company Profile

Double Cut 2500mm Diameter 30mm Flight Rock Drilling Auger

Digging Different Holes Diameters Earth Augers, Rock Auger Ground Drilling Machines, Drilling Auger

Introduction:

HM Machinery Driling Augers have been designed for drilling in dry soil and in rock.
Variours teeth configurations are available for different soil conditions
The geometry of the teeth arrangement is optimized for reaching excellent cutting performance.

Double-cut, single flight, straight rock auger with pilot
OD	Height	Tool box size	Flight pitch	Flight thickness	Flight thickness	Teeth quantity (excludes pilot)	Central shaft OD	Weight
D1(mm)	H2 (mm)		P1/P2 (mm)	δ1(mm)	δ2(mm)	pc	D2 (mm)	Kg
500			400/550	30	30	4	￠180*25	640
600	1350	Optional	400/550	30	30	4	￠180*25	717
700			500/600	30	30	6	￠219*25	843
800			500/600	30	30	8	￠219*25	946
900			500/600	30	30	10	￠219*25	1077
1000			500/600	30	30	12	￠219*25	1187
1100			500/600	30	30	12	￠219*25	1315
1200			600/700	30	30	14	￠219*25	1370
1300			600/700	30	30	16	￠219*25	1505
1400			600/700	30	30	18	￠219*25	1660
1500			700/900	30	30	18	￠219*25	1659
1600			700/900	30	30	20	￠219*25	1810
1700			700/900	30	30	22	￠219*25	1979
1800			900	30	30	24	￠219*25	2020
1900			900	30	30	26	￠219*25	2188
2000			900	30	30	26	￠219*25	2351
2100			900	30	30	28	￠219*25	2524
2200			900	30	30	30	￠219*25	2700
2300			900	30	30	32	￠219*25	2900
2400			900	30	30	34	￠219*25	3100
2500			900	30	30	34	￠219*25	3282

Double-cut, single flight clay auger
OD	Height	Tool box size	Flight pitch	Flight thickness	Flight thickness	Central shaft OD	Weight
D1(mm)	H2 (mm)		P1/P2 (mm)	δ1(mm)	δ2(mm)	D2 (mm)	Kg
500			400/550	30	30	￠180*25	643
600	1350	Optional	400/550	30	30	￠180*25	728
700			500/600	30	30	￠219*25	850
800			500/600	30	30	￠219*25	942
900			500/600	30	30	￠219*25	1053
1000			500/600	30	30	￠219*25	1163
1100			500/600	30	30	￠219*25	1300
1200			600/700	30	30	￠219*25	1356
1300			600/700	30	30	￠219*25	1500
1400			600/700	30	30	￠219*25	1662
1500			700/900	30	30	￠219*25	1665
1600			700/900	30	30	￠219*25	1812
1700			700/900	30	30	￠219*25	1963
1800			900	30	30	￠219*25	2000
1900			900	30	30	￠219*25	2171
2000			900	30	30	￠219*25	2346
2100			900	30	30	￠219*25	2523
2200			900	30	30	￠219*25	2700
2300			900	30	30	￠219*25	2889
2400			900	30	30	￠219*25	3100
2500			900	30	30	￠219*25	3287

Double-cut, single flight, straight rock auger with pilot
OD	Height	Tool box size	Flight pitch	Flight thickness	Flight thickness	Teeth quantity (excludes pilot)	Central shaft OD	Weight
D1(mm)	H2 (mm)		P1/P2 (mm)	δ1(mm)	δ2(mm)	pc	D2 (mm)	Kg
500			400/550	30	30	4	￠180*25	640
600	1350		400/550	30	30	4	￠180*25	717
700			500/600	30	30	6	￠219*25	843
800			500/600	30	30	8	￠219*25	946
900			500/600	30	30	10	￠219*25	1077
1000			500/600	30	30	12	￠219*25	1187
1100			500/600	30	30	12	￠219*25	1315
1200			600/700	30	30	14	￠219*25	1370
1300			600/700	30	30	16	￠219*25	1505
1400			600/700	30	30	18	￠219*25	1660
1500			700/900	30	30	18	￠219*25	1659
1600			700/900	30	30	20	￠219*25	1810
1700			700/900	30	30	22	￠219*25	1979
1800			900	30	30	24	￠219*25	2020
1900			900	30	30	26	￠219*25	2188
2000			900	30	30	26	￠219*25	2351
2100			900	30	30	28	￠219*25	2524
2200			900	30	30	30	￠219*25	2700
2300			900	30	30	32	￠219*25	2900
2400			900	30	30	34	￠219*25	3100
2500			900	30	30	34	￠219*25	3282

Single-cut, single flight, straight rock auger
OD	Height	Tool box size	Flight pitch	Flight thickness	Flight thickness	Teeth quantity (excludes pilot)	Central shaft OD	Weight
D1(mm)	H2 (mm)		P1/P2 (mm)	δ1(mm)	δ2(mm)	pc	D2 (mm)	Kg
500			500	30	30	2	￠180*25	588
600	1250	Optional	500	30	30	2	￠180*25	650
700			500	30	30	3	￠219*25	742
800			500	30	30	4	￠219*25	825
900			500	30	30	5	￠219*25	944
1000			500	30	30	6	￠219*25	1034
1100			500	30	30	6	￠219*25	1159
1200			700	30	30	7	￠219*25	1110
1300			700	30	30	8	￠219*25	1210
1400			700	30	30	9	￠219*25	1310
1500			700	30	30	9	￠219*25	1420
1600			700	30	30	10	￠219*25	1538
1700			700	30	30	11	￠219*25	1667
1800			900	30	30	12	￠219*25	1575
1900			900	30	30	13	￠219*25	1685
2000			900	30	30	13	￠219*25	1800
2100			900	30	30	14	￠219*25	1920
2200			900	30	30	15	￠219*25	2050
2300			900	30	30	16	￠219*25	2176
2400			900	30	30	17	￠219*25	2300
2500			900	30	30	17	￠219*25	2459

Double-cut, single flight, progressive rock auger
OD	Height	Tool box size	Flight pitch	Flight thickness	Flight thickness	Teeth quantity (excludes pilot)	Central shaft OD	Weight
D1(mm)	H2 (mm)		P1/P2 (mm)	δ1(mm)	δ2(mm)	pc	D2 (mm)	Kg
500			400/550	30	30	18	￠180*25	670
600	1350	Optional	400/550	30	30	20	￠180*25	742
700			500/600	30	30	21	￠219*25	871
800			500/600	30	30	22	￠219*25	950
900			500/600	30	30	23	￠219*25	1050
1000			500/600	30	30	24	￠219*25	1147
1100			500/600	30	30	25	￠219*25	1267
1200			600/700	30	30	26	￠219*25	1290
1300			600/700	30	30	28	￠219*25	1400
1400			600/700	30	30	30	￠219*25	1530
1500			700/900	30	30	32	￠219*25	1520
1600			700/900	30	30	33	￠219*25	1620
1700			700/900	30	30	34	￠219*25	1730
1800			900	30	30	36	￠219*25	1787
1900			900	30	30	37	￠219*25	1863
2000			900	30	30	38	￠219*25	2000
2100			900	30	30	39	￠219*25	2127
2200			900	30	30	40	￠219*25	2259
2300			900	30	30	41	￠219*25	2400
2400			900	30	30	42	￠219*25	2590
2500			900	30	30	44	￠219*25	2700

Single-cut, single flight, progressive rock auger
OD	Height	Tool box size	Flight pitch	Flight thickness	Flight thickness	Teeth quantity (excludes pilot)	Weight	Central shaft OD
D1(mm)	H2 (mm)		P1/P2 (mm)	δ1(mm)	δ2(mm)	pc	Kg	D2 (mm)
500			500	30	30	10	595	￠180*25
600	1250	Optional	500	30	30	12	640	￠180*25
700			500	30	30	13	745	￠219*25
800			500	30	30	13	827	￠219*25
900			500	30	30	14	904	￠219*25
1000			500	30	30	14	980	￠219*25
1100			500	30	30	15	1092	￠219*25
1200			700	30	30	15	1003	￠219*25
1300			700	30	30	15	1073	￠219*25
1400			700	30	30	16	1150	￠219*25
1500			700	30	30	16	1233	￠219*25
1600			700	30	30	18	1320	￠219*25
1700			700	30	30	19	1420	￠219*25
1800			900	30	30	20	1300	￠219*25
1900			900	30	30	21	1350	￠219*25
2000			900	30	30	21	1435	￠219*25
2100			900	30	30	22	1510	￠219*25
2200			900	30	30	22	1600	￠219*25
2300			900	30	30	23	1681	￠219*25
2400			900	30	30	23	1775	￠219*25
2500			900	30	30	24	1860	￠219*25

Product parameters

Characteristics :

Double cutter bearing uniform force, can avoid inclined hole ;
Double spiral easy to carry soil, but meet cohensive soil, single spiral is easy to dump spoil;
Applicable layers: clay, high-weathered layer, gravel etc.

FAQ

1. What is your package?
Generally, Can provide film, wooden box, iron frame support If you have special requirement for package, please tell us.

2. How about your delivery time?
Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

3. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures!

4.What is the quality control for your products?
All of our production is in lines of API rules and ISO9001:2015 strictly, from signing contract, to raw materials, to each production process, to product finish, to after-sale service, each process and section are in accordant with standard.
