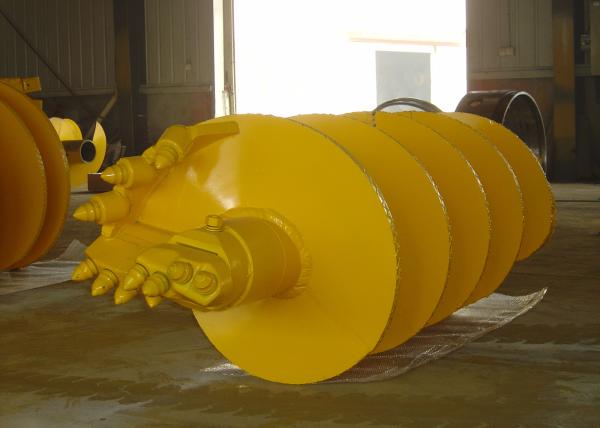

Rock Single Head Single Snail For Construction Machinery
Product parameters
| Single-cut, single flight, straight rock auger | ||||||||
| Economic | ||||||||
| OD | Height | Tool box size | Flight pitch | Flight thickness | Flight thickness | Teeth quantity (excludes pilot) | Central shaft OD | Weight |
| D1(mm) | H2 (mm) | P1/P2 (mm) | δ1(mm) | δ2(mm) | pc | D2 (mm) | Kg | |
| 500 | 500 | 30 | 30 | 2 | ￠180*25 | 588 | ||
| 600 | 1250 | Optional | 500 | 30 | 30 | 2 | ￠180*25 | 650 |
| 700 | 500 | 30 | 30 | 3 | ￠219*25 | 742 | ||
| 800 | 500 | 30 | 30 | 4 | ￠219*25 | 825 | ||
| 900 | 500 | 30 | 30 | 5 | ￠219*25 | 944 | ||
| 1000 | 500 | 30 | 30 | 6 | ￠219*25 | 1034 | ||
| 1100 | 500 | 30 | 30 | 6 | ￠219*25 | 1159 | ||
| 1200 | 700 | 30 | 30 | 7 | ￠219*25 | 1110 | ||
| 1300 | 700 | 30 | 30 | 8 | ￠219*25 | 1210 | ||
| 1400 | 700 | 30 | 30 | 9 | ￠219*25 | 1310 | ||
| 1500 | 700 | 30 | 30 | 9 | ￠219*25 | 1420 | ||
| 1600 | 700 | 30 | 30 | 10 | ￠219*25 | 1538 | ||
| 1700 | 700 | 30 | 30 | 11 | ￠219*25 | 1667 | ||
| 1800 | 900 | 30 | 30 | 12 | ￠219*25 | 1575 | ||
| 1900 | 900 | 30 | 30 | 13 | ￠219*25 | 1685 | ||
| 2000 | 900 | 30 | 30 | 13 | ￠219*25 | 1800 | ||
| 2100 | 900 | 30 | 30 | 14 | ￠219*25 | 1920 | ||
| 2200 | 900 | 30 | 30 | 15 | ￠219*25 | 2050 | ||
| 2300 | 900 | 30 | 30 | 16 | ￠219*25 | 2176 | ||
| 2400 | 900 | 30 | 30 | 17 | ￠219*25 | 2300 | ||
| 2500 | 900 | 30 | 30 | 17 | ￠219*25 | 2459 | ||
Used in
Used for soft rock with sand and gravel layer less than 5MP
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and
sales of various drill bits and drill pipes, as well as the import
and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our
products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In
addition to visiting the factory, we also warmly welcome customers
or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The
specific delivery time will be provided in each quotation.
|
|
