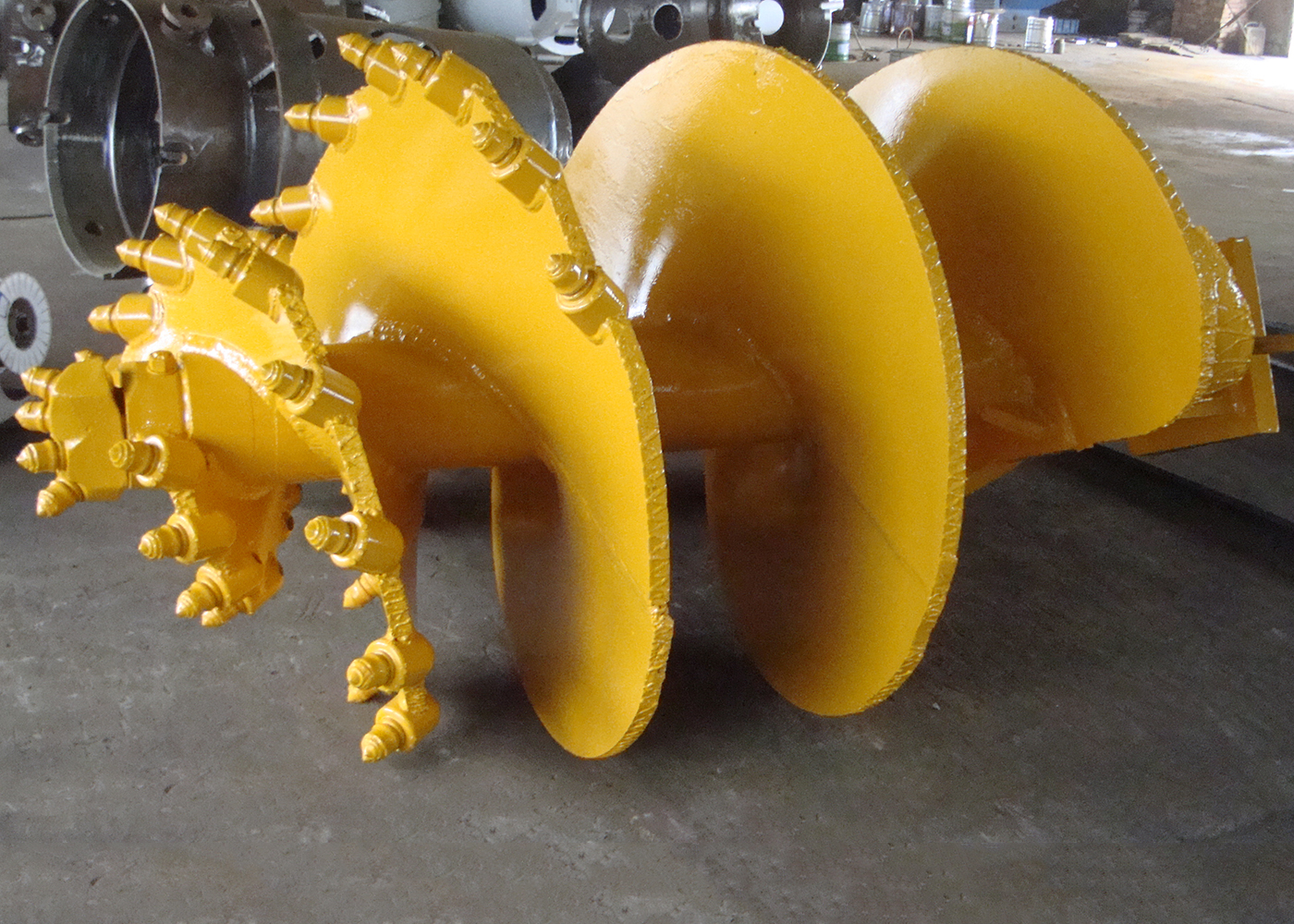

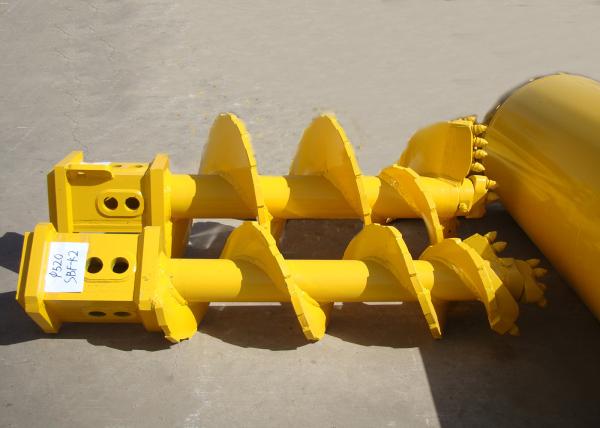

Pile Rigs Double-Head Single-Spiral Rock Drilling Auger
Introduction:
Mian Applications: Single cut flat or butterfly rock auger are suitable for drilling in very dense sand and gravel, weak rock (<5 Mpa). Double cut auger is recommended in uncased bores or for bigger diameters and secant pile walls.
Sturdy and wearale rock pilots for accurate poitioning.
Hard facing strips on flights for wear protection.
Product parameters
| Double-cut, single flight, straight rock auger with pilot | ||||||||
| OD | Height | Tool box size | Flight pitch | Flight thickness | Flight thickness | Teeth quantity (excludes pilot) | Central shaft OD | Weight |
| D1(mm) | H2 (mm) | P1/P2 (mm) | δ1(mm) | δ2(mm) | pc | D2 (mm) | Kg | |
| 500 | 400/550 | 30 | 30 | 4 | ￠180*25 | 640 | ||
| 600 | 1350 | Optional | 400/550 | 30 | 30 | 4 | ￠180*25 | 717 |
| 700 | 500/600 | 30 | 30 | 6 | ￠219*25 | 843 | ||
| 800 | 500/600 | 30 | 30 | 8 | ￠219*25 | 946 | ||
| 900 | 500/600 | 30 | 30 | 10 | ￠219*25 | 1077 | ||
| 1000 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1187 | ||
| 1100 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1315 | ||
| 1200 | 600/700 | 30 | 30 | 14 | ￠219*25 | 1370 | ||
| 1300 | 600/700 | 30 | 30 | 16 | ￠219*25 | 1505 | ||
| 1400 | 600/700 | 30 | 30 | 18 | ￠219*25 | 1660 | ||
| 1500 | 700/900 | 30 | 30 | 18 | ￠219*25 | 1659 | ||
| 1600 | 700/900 | 30 | 30 | 20 | ￠219*25 | 1810 | ||
| 1700 | 700/900 | 30 | 30 | 22 | ￠219*25 | 1979 | ||
| 1800 | 900 | 30 | 30 | 24 | ￠219*25 | 2020 | ||
| 1900 | 900 | 30 | 30 | 26 | ￠219*25 | 2188 | ||
| 2000 | 900 | 30 | 30 | 26 | ￠219*25 | 2351 | ||
| 2100 | 900 | 30 | 30 | 28 | ￠219*25 | 2524 | ||
| 2200 | 900 | 30 | 30 | 30 | ￠219*25 | 2700 | ||
| 2300 | 900 | 30 | 30 | 32 | ￠219*25 | 2900 | ||
| 2400 | 900 | 30 | 30 | 34 | ￠219*25 | 3100 | ||
| 2500 | 900 | 30 | 30 | 34 | ￠219*25 | 3282 | ||
our service
1. We will track each customer to obtain feedback on product
quality and service. We will make changes based on your feedback.
2. If the product size is wrong, we will send the correct product
for free.
3. We guarantee high quality. If you find any damage, please feel
free to contact us. We will solve the problem as soon as possible.
|
|
