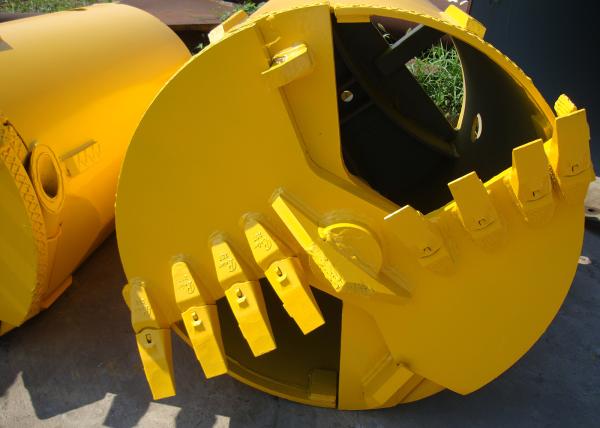

Cone Bucket Cleaning Drill Bucket
Introduction
The drilling barrel is used for soil and rock drilling, and can be designed as single bottom and double bottom. Single bottom buckets are used for clay and elastic soil. Double bottoms are used for soil, sand, loose gravel formations, gravel and medium to soft rocks. The bottom can be single cut or double cut. The single-cut method is used to drill holes in gravel layers with larger diameters, larger pebbles and boulders; double-cut is used to drill holes in normal sand and small gravel layers.
main application:
Recoil, the strength reaches medium rock
Product parameters
| 1.Double bottom double open rock drill bucket(straight barrel) | ||||||
| Specification | Barrel height(mm) | Barrel thickness (mm) | Thickness of bottom plate | Cutting plate thickness | Number of teeth | weight(kg) |
| φ600 | 1200 | 16 | 40 | 50 | 2 | 747 |
| φ800 | 1200 | 16 | 40 | 50 | 4 | 995 |
| φ1000 | 1200 | 16 | 40 | 50 | 6 | 1180 |
| φ1200 | 1200 | 16 | 40 | 50 | 7 | 1535 |
| φ1500 | 1200 | 16 | 40 | 50 | 9 | 2027 |
| φ1800 | 1200 | 16 | 50 | 50 | 12 | 2795 |
| φ2000 | 800 | 20 | 50 | 50 | 12 | 3560 |
| φ2200 | 800 | 20 | 50 | 50 | 14 | 4360 |
| φ2500 | 800 | 20 | 40 Box type | 40 Box type | 16 | 5730 |
| Connect square head 200mm |
Used in
It is suitable for loose soil, sandy soil layer with high water content, soft to hard silt, clay, up to coarse gravel.
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and
sales of various drill bits and drill pipes, as well as the import
and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our
products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In
addition to visiting the factory, we also warmly welcome customers
or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The
specific delivery time will be provided in each quotation.
|
|
