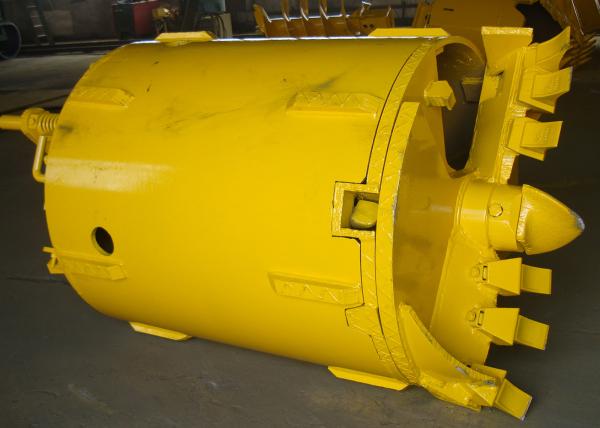

Selling Core Barrels With Cross Cutters
Introduction
1- Two-part soil drilling bucket is used for drilling soil, hard
soil and argillaceous rock.
2- According to the bucket diameter, the type of drilling rig and
the ground to be drilled, the bucket can be designed into
cylindrical and conical types.
Product parameters
| 1.Double bottom double open rock drill bucket(straight barrel) | ||||||
| Specification | Barrel height(mm) | Barrel thickness (mm) | Thickness of bottom plate | Cutting plate thickness | Number of teeth | weight(kg) |
| φ600 | 1200 | 16 | 40 | 50 | 2 | 747 |
| φ800 | 1200 | 16 | 40 | 50 | 4 | 995 |
| φ1000 | 1200 | 16 | 40 | 50 | 6 | 1180 |
| φ1200 | 1200 | 16 | 40 | 50 | 7 | 1535 |
| φ1500 | 1200 | 16 | 40 | 50 | 9 | 2027 |
| φ1800 | 1200 | 16 | 50 | 50 | 12 | 2795 |
| φ2000 | 800 | 20 | 50 | 50 | 12 | 3560 |
| φ2200 | 800 | 20 | 50 | 50 | 14 | 4360 |
| φ2500 | 800 | 20 | 40 Box type | 40 Box type | 16 | 5730 |
| Connect square head 200mm |
application
In clay, silt and loose to medium density sand and gravel
You can choose to have
A clay drill bucket. Single or double bottom
B. Single cut or double cut
C. Cylindrical barrel or conical barrel
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and
sales of various drill bits and drill pipes, as well as the import
and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our
products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In
addition to visiting the factory, we also warmly welcome customers
or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The
specific delivery time will be provided in each quotation.
|
|
